16 Way Wireless Commercial Alarm Shop Home Telephone Engineering Security System

Features:

Wireless functions (wireless receiving module should be extended):

1. Support 16 wireless defense zones;
2. Support the coding of two groups of 315MHz remote control, and the encoder's shock resistance is 1.2m - 4.7m and 2262 coding mode;

Telephone alarm function:

1. Support 3 central alarm calls;
2. Support 8 groups of user alarm calls;
3. Support remote phone programming;
4. Defense report number :1;
5. Removal of reporting number :1;

1. Maximum number of support zones :16;
2. The number of defense zones on the host :8 (the defense area terminal properties are programmable);
3. Time setting time :3;
4. Time removal time :3 times;
5. Cross section: support 8 groups;
6. Automatic defense of the host: support;
7. Block triggering time: programmable;
8. Number of defense area types :11;
9. Number of alarm record storage :30 (power-down storage);
10. Storage quantity of operation records :30 (power-down storage);
11. Type of password: master password, holding code, 2 groups of unlock password, 8 groups of user password, and 16 groups of defense password;
12. Support the security bypass;

Technical Parameters

Advantages:

Extension function of RS485 bus (RS485 bus driver module needs to be extended):
1. Number of RS485 bus linked linkage modules :2 (host supports 32 linkage output);
2. Linkage type: alarm linkage in defense area, removal linkage in defense area, abnormal linkage in defense area;

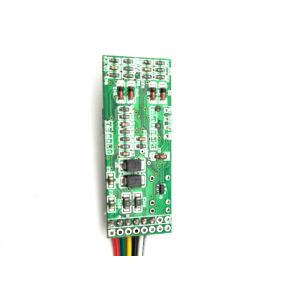

3. Extended function of RS485 bus defense area: support 16 bus address modules (support single defense area address module hak-5-1b, double defense area address module hak-5-2b, single defense area with alarm output module hak-5-1c,8 defense area address module);
4. Number of operating keyboards: 4 (Chinese LCD operating keyboards) are supported, including 1 main keyboard and 3 sub-controlled keyboards;
5. Defense area zoning management: support (each keyboard can independently operate the defense area cloth under its jurisdiction, and remove the defense, etc., and all alarm and alarm information can be displayed by setting any keyboard through the main keyboard);
6. Each RS485 communication port can support a distance of 1.2KM without adding a repeater;

Why Choose Us?

1. HongAnKe is a factory with own engineer team and production lines.
2. 10 years experience is the security fields.
3. 100% test of products.
4. OEM / ODM acceptable
5. Honest and Quality is our faith.

Payment Term:

Bank Transfer (T/T)
